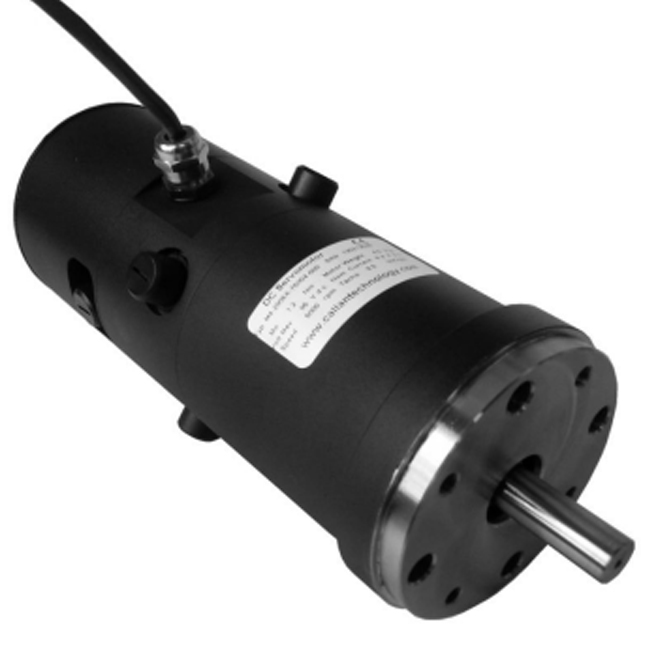

SEM Motor Replacements

  1. SEM Motor Replacements

    SEM Motor Replacements

    • Identical motor shaft and mount dimensions (IEC & NEMA options)
    • Matched motor windings
    • Compatible torque/speed performance
    • Matched connection options
    • 24V DC brake option
    • Matched tachogenerator output
    • Encoder options available
    • Rare Earth magnets
    • Rugged mechanical design


  2. SEM MT Motor Equivelents
    Motor Family
    Torque
    (Nm)
    Voltage DC
    (V)
    Speed
    (RPM)
    Frame  Size
    (mm)
    Shaft  Diameter
    (mm)
    MT 22
    0.5 to 1.5
    50 to 110
    5000
    75
    12h6
    MT 30
    2.0 to 6.0
    80 to 140
    4000
    108
    16j6
    MT 40
    7.0 to 14.0
    150 to 180
    4000
    146
    24j6
    MT 52
    15 to 17
    140
    3500
    145
    32k6

    * MT is a tradename of SEM Ltd, UK, brush DC servomotors
