Hybrid Stepper Motors

General Specs:
- Step Angle Accuracy: ±5% ( full step, no load )
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Temperature Rise: 80℃ max ( rated current, 2 phase on )
- Ambient Temperature: -20℃ ~ +50℃
- Insulation Resistance: 100MΩ min, 500VDC
- Dielectric Strength: 500VAC for one minute 5mA
- Shaft Radial Play: 0.02mm max ( 450g load )
- Shaft Axial Play: 0.08mm max ( 450g load )
- Rotation: CW
- Insulation Class: B (130℃)

  1. 20HASD Series Hybrid Stepper Motors

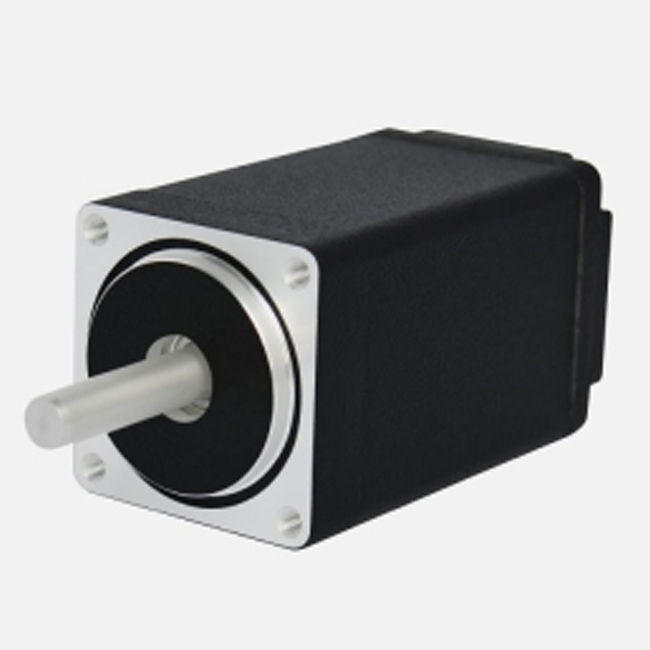

    20HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 2, 5.4, 6.5, 20
    - Current (A): 0.2, 0.6, 0.8
    - Voltage: 1.2, 3.9, 4, 4.32
    - Holding Torque (N.cm): 1.2, 1.6, 1.8, 3
    - Lead Wires/pins: 4
    - Rotor Inetia （g.cm²）: 2, 2.5, 3
    - Max. Radial Force: 20N ( 20mm from the flange )
    - Max. Axial Force: 2N
    Call us for more information

  2. 28HASD Series Hybrid Stepper Motors

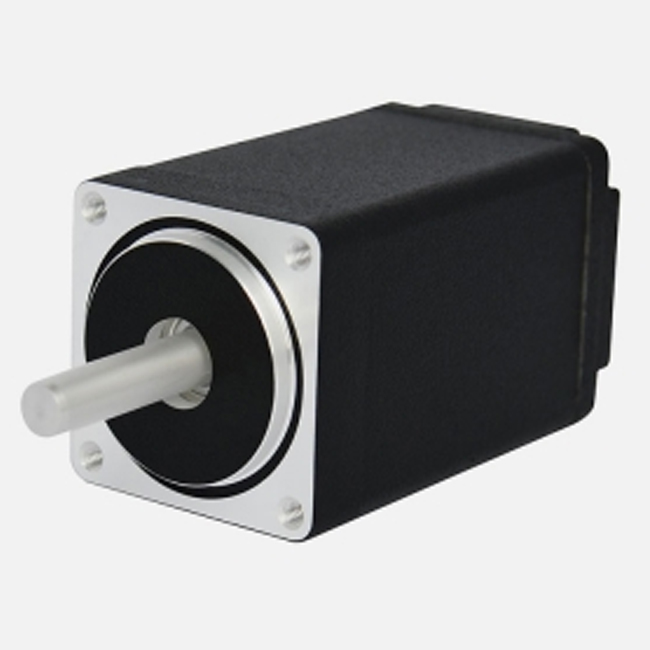

    28HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 3.4, 3.5, 10, 12, 36, 48
    - Current (A): 0.3, 0.5, 0.95, 1
    - Voltage: 3.23, 3.5, 5, 6, 10.8, 14.4
    - Holding Torque (N.cm): 3, 3.4, 5, 6, 7.5, 13
    - Lead Wires/pins: 4, 6
    - Rotor Inetia （g.cm²）: 7, 8, 10, 12, 18
    - Max. Radial Force: 28N ( 20mm from the flange )
    - Max. Axial Force: 10N
    Call us for more information

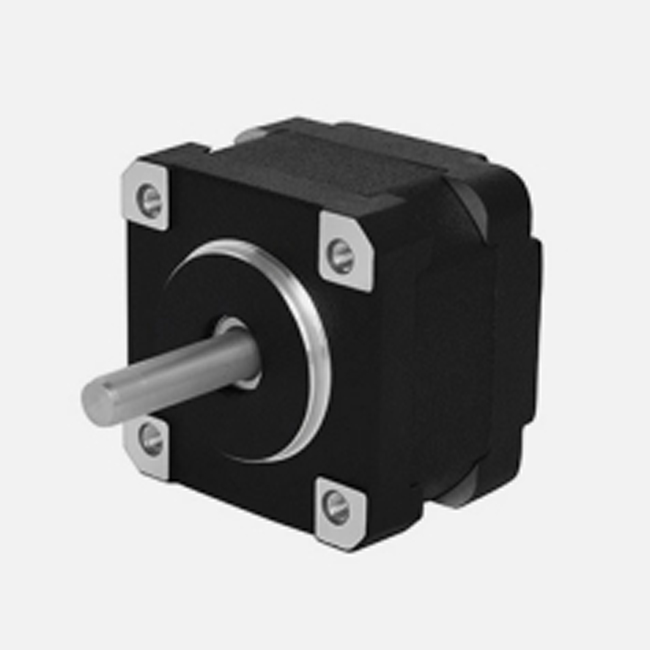

  3. 35HASM Series Hybrid Stepper Motors

    35HASM Series Hybrid Stepper Motors (0.9 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 4, 6.8, 10, 24, 70, 80
    - Current (A): 0.1, 0.16, 0.4, 0.5, 0.8
    - Voltage: 3.2, 4, 5, 5.44, 7, 12, 12.8
    - Holding Torque (N.cm): 5, 8, 18, 25
    - Lead Wires/pins: 4, 6, 8
    - Rotor Inetia （g.cm²）: 10, 11, 12, 14, 20, 50
    - Max. Radial Force: 28N ( 20mm from the flange )
    - Max. Axial Force: 10N
    Call us for more information

  4. 35HASD Series Hybrid Stepper Motors

    35HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 4, 6.8, 10, 24, 70, 80
    - Current (A): 0.1, 0.16, 0.4, 0.5, 0.8
    - Voltage: 3.2, 4, 5, 5.44, 7, 12, 12.8
    - Holding Torque (N.cm): 5, 8, 18, 25
    - Lead Wires/pins: 4, 6, 8
    - Rotor Inetia （g.cm²）: 10, 11, 12, 14, 20, 50
    - Max. Radial Force: 28N ( 20mm from the flange )
    - Max. Axial Force: 10N
    Call us for more information

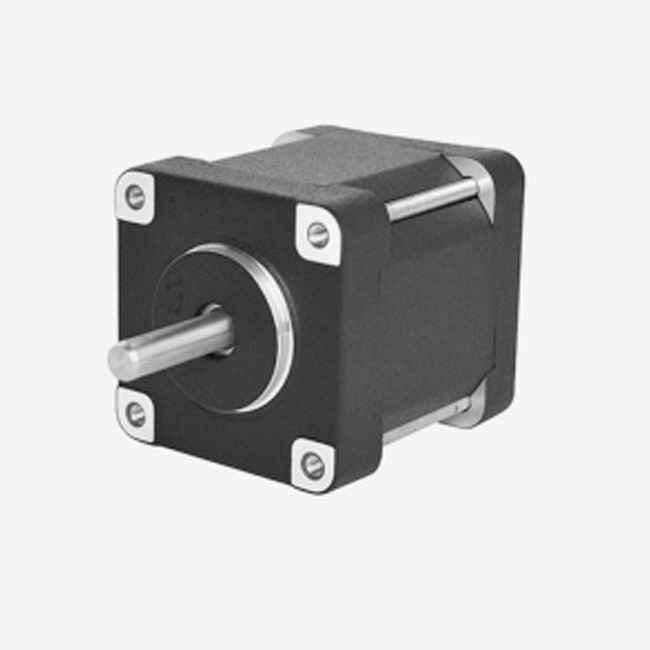

  5. 39HASD Series Hybrid Stepper Motors

    39HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 3, 4, 4.4, 7, 7.5, 9.1, 10, 30, 40
    - Current (A): 0.3, 0.4, 0.55, 0.6, 0.65, 0.9, 1.1, 1.2
    - Voltage: 3.6, 3.96, 4.4, 5, 6, 12
    - Holding Torque (N.cm): 5, 8.2, 9, 15, 17, 20, 22, 28
    - Lead Wires/pins: 4, 6, 8
    - Rotor Inetia （g.cm²）: 11, 12, 14, 15, 16, 20, 27, 32, 35
    - Max. Radial Force: 28N ( 20mm from the flange )
    - Max. Axial Force: 10N
    Call us for more information

  6. 39HASM Series Hybrid Stepper Motors

    39HASM Series Hybrid Stepper Motors (0.9 Degree)

    - Step Angle Degree: 0.9°
    - Resistance (Ω): 2.2, 3, 10, 11, 12, 14, 23, 26
    - Current (A): 0.4, 0.48, 0.5, 0.6, 1.2
    - Voltage: 2.2, 3.6, 5, 5.5, 7, 7.2, 10.4, 11
    - Holding Torque (N.cm): 8, 8.2, 12, 13, 14, 18, 20
    - Lead Wires/pins: 4, 6
    - Rotor Inetia （g.cm²）: 10, 12, 13, 14, 17, 27, 29
    - Max. Radial Force: 28N ( 20mm from the flange )
    - Max. Axial Force: 10N
    Call us for more information

  7. 42HASM Series Hybrid Stepper Motors

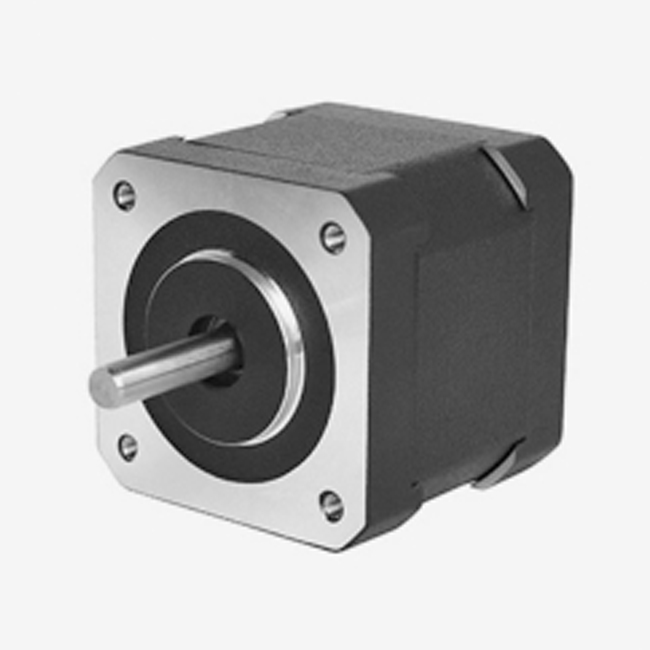

    42HASM Series Hybrid Stepper Motors (0.9 Degree)

    - Step Angle Degree: 0.9°
    - Resistance (Ω): 1, 3, 8, 21, 25, 30
    - Current (A): 0.4, 0.425, 0.48, 1.2, 1.3, 2.4
    - Voltage: 2.4, 3, 3.4, 3.6, 12
    - Holding Torque (N.cm): 10, 11, 16, 20, 21, 44
    - Lead Wires/pins: 4, 6
    - Rotor Inetia （g.cm²）: 16, 18, 20, 36, 56, 70
    - Max. Radial Force: 28N ( 20mm from the flange )
    - Max. Axial Force: 10N
    Call us for more information

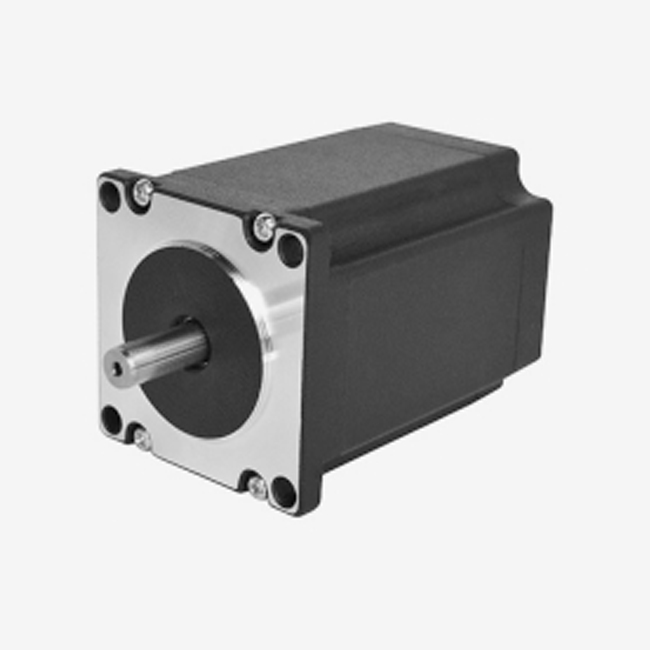

  8. 57HASD Series Hybrid Stepper Motors

    57HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 0.52, 0.7, 0.75, 0.83, 1, 1.35, 12, 16
    - Current (A): 0.6, 0.7, 2, 2.5, 3, 4, 5
    - Voltage: 1.56, 2, 2.324, 2.4, 2.8, 3, 3.375, 3.5, 7.2, 11.2
    - Holding Torque (N.cm): 55, 78, 100, 110, 160, 180, 220, 230, 250
    - Lead Wires/pins: 4, 8
    - Rotor Inetia （g.cm²）: 135, 180, 210, 230, 280, 340, 460, 500, 530, 650, 760
    - Max. Radial Force: 70N ( 20mm from the flange )
    - Max. Axial Force: 30N
    Call us for more information

  9. 57HASM Series Hybrid Stepper Motors

    57HASM Series Hybrid Stepper Motors (0.9 Degree)

    - Step Angle Degree: 0.9°
    - Resistance (Ω): 0.48, 0.7, 1.6, 1.82, 2, 6, 26
    - Current (A): 0.5, 0.88, 2, 2.1, 3, 5.4
    - Voltage: 1.56, 2, 2.324, 2.4, 2.8, 3, 3.375, 3.5, 7.2, 11.2
    - Holding Torque (N.cm): 55, 78, 100, 110, 160, 180, 220, 230, 250
    - Lead Wires/pins: 4, 8
    - Rotor Inetia （g.cm²）: 135, 180, 210, 230, 280, 340, 460, 500, 530, 650, 760
    - Max. Radial Force: 70N ( 20mm from the flange )
    - Max. Axial Force: 30N
    Call us for more information

  10. 57HAYD Series Hybrid Stepper Motors

    57HAYD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 0.93, 2, 3.6, 5, 40
    - Current (A): 0.5, 1, 1.4, 1.5, 3
    - Voltage: 2.79, 2.8, 5, 5.4, 20
    - Holding Torque (N.cm): 42, 53, 60, 70, 90
    - Lead Wires/pins: 4, 8
    - Rotor Inetia （g.cm²）: 55, 120, 140, 145, 300
    - Max. Radial Force: 70N ( 20mm from the flange )
    - Max. Axial Force: 30N
    Call us for more information

  11. 57HAYM Series Hybrid Stepper Motors

    57HAYM Series Hybrid Stepper Motors (0.9 Degree)

    - Step Angle Degree: 0.9°
    - Resistance (Ω): 3.9, 6.205, 7.75
    - Current (A): 0.5, 0.85, 1
    - Voltage: 3.9, 6.205, 7.75
    - Holding Torque (N.cm): 25, 50, 52
    - Lead Wires/pins: 4, 6
    - Rotor Inetia （g.cm²）: 50, 120, 125
    - Max. Radial Force: 70N ( 20mm from the flange )
    - Max. Axial Force: 30N
    Call us for more information

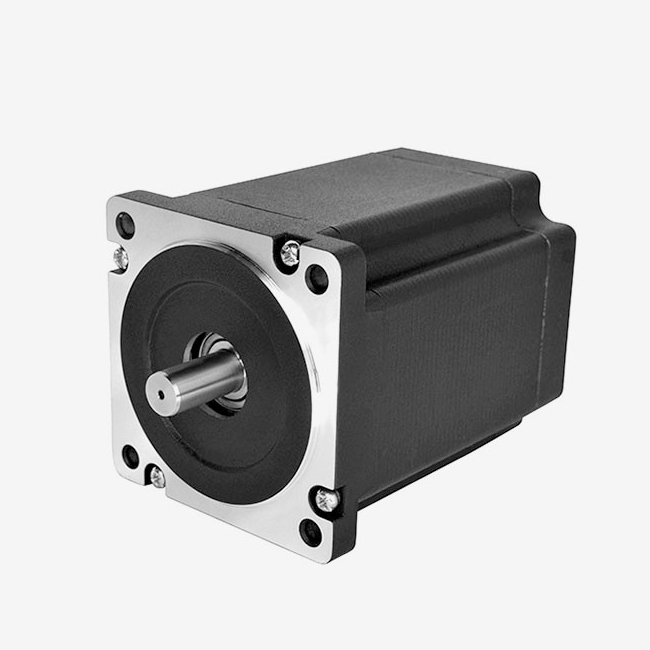

  12. 86HASD Series Hybrid Stepper Motors

    86HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 0.34, 0.35, 0.42, 0.48, 0.75, 0.85, 1, 1.3
    - Current (A): 2.4, 4, 4.5, 5, 5.5, 7, 7.1
    - Voltage: 1.7, 2.16, 2.31, 2.485, 3, 3.12, 3.75, 4, 4.5, 5.95
    - Holding Torque (N.cm): 220, 290, 420, 450, 460, 600, 607, 800, 1200
    - Lead Wires/pins: 4, 8
    - Rotor Inetia （g.cm²）: 1400, 1500, 1850, 1900, 2300, 2700, 3200, 3500, 3800, 4500
    - Max. Radial Force: 220N ( 20mm from the flange )
    - Max. Axial Force: 60N
    Call us for more information

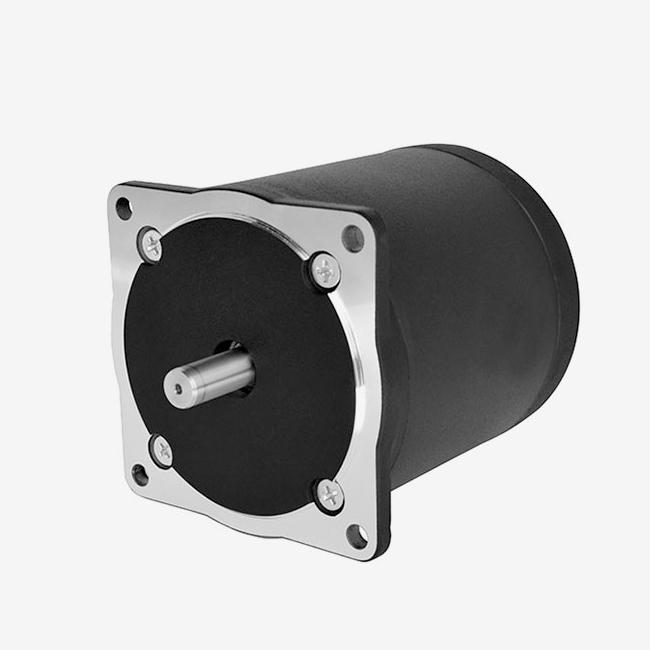

  13. 86HAYD Series Hybrid Stepper Motors

    86HAYD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 0.2, 0.7, 0.8, 1, 2.7
    - Current (A): 2.4, 4, 4.5, 5, 5.5, 7, 7.1
    - Voltage: 1.36, 2.5, 3.2, 3.5, 5.4
    - Holding Torque (N.cm): 160, 180, 350, 450, 480
    - Lead Wires/pins: 4, 8
    - Rotor Inetia （g.cm²）: 570, 800, 1200, 1750, 2100
    - Max. Radial Force: 220N ( 20mm from the flange )
    - Max. Axial Force: 60N
    Call us for more information

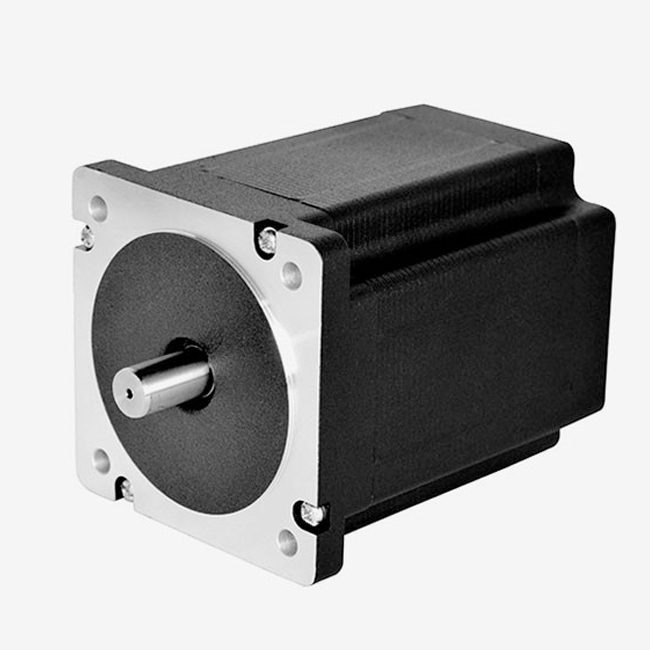

  14. 90HASD Series Hybrid Stepper Motors

    90HASD Series Hybrid Stepper Motors (1.8 Degree)

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 0.52, 0.53, 0.62, 0.65, 0.82
    - Current (A): 5, 6
    - Voltage: 2.6, 3.1, 3.9, 4.9
    - Holding Torque (N.cm): 320, 520, 700, 980, 1300
    - Lead Wires/pins: 8
    - Rotor Inetia （g.cm²）: 1.2, 1.8, 2.4, 3.5, 4.8
    - Max. Radial Force: 220N ( 20mm from the flange )
    - Max. Axial Force: 60N
    Call us for more information

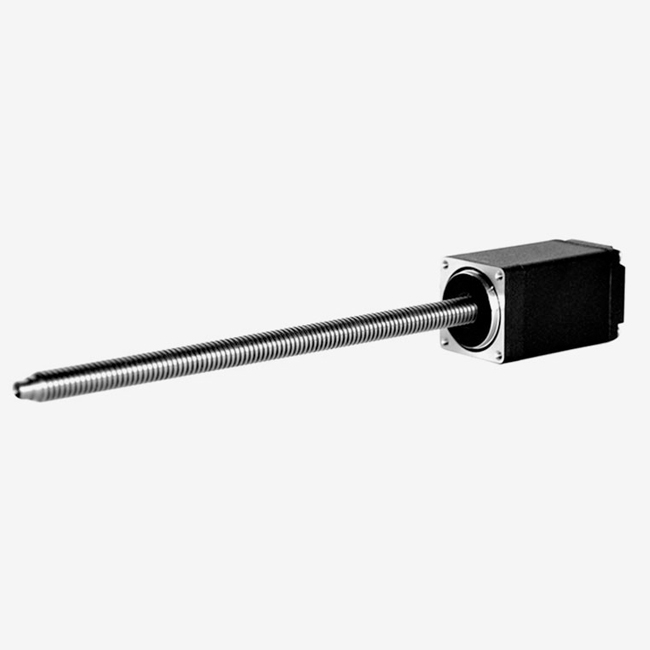

  15. External linear actuator

    External Linear Actuator

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 9.2
    - Current (A): 0.67
    - Voltage: 6.2
    - Holding Torque (N.cm): 12
    - Lead Wires/pins: 4
    Call us for more information

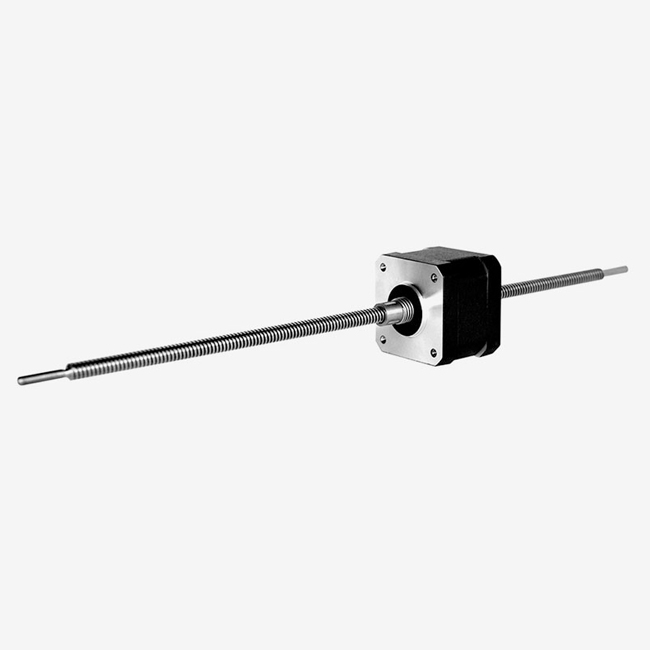

  16. Non-Captive Linear Actuator

    Non-Captive Linear Actuator

    - Step Angle Degree: 1.8°
    - Resistance (Ω): 7.3
    - Current (A): 0.67
    - Voltage: 4.89
    - Holding Torque (N.cm): 25
    - Lead Wires/pins: 4
    Call us for more information
