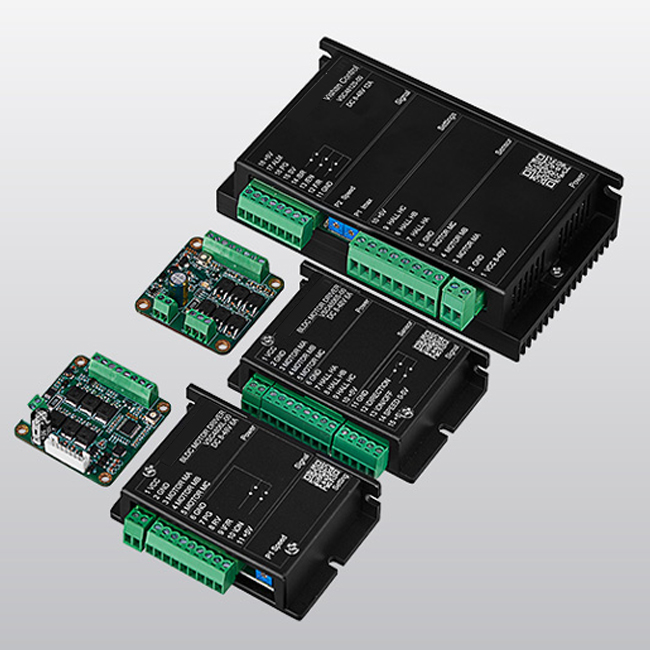

Brushless DC Motor Controllers
-
Brushless DC Motor Controllers
High energy efficient, reliable, downsize but higher power output brushless DC motor controllers, and software's flexible customization.
- Sensor Brushless DC motor controller
- Wide operating voltage from 8-48VDC
- Impeccable software protection
- Reliable quality
Typical frame sizes and specifications:
| Model | Operating Voltage (Vdc) | Max Output Current (A) | Continuous output Current (A) | Type | Specification | CAD | 3D CAD |

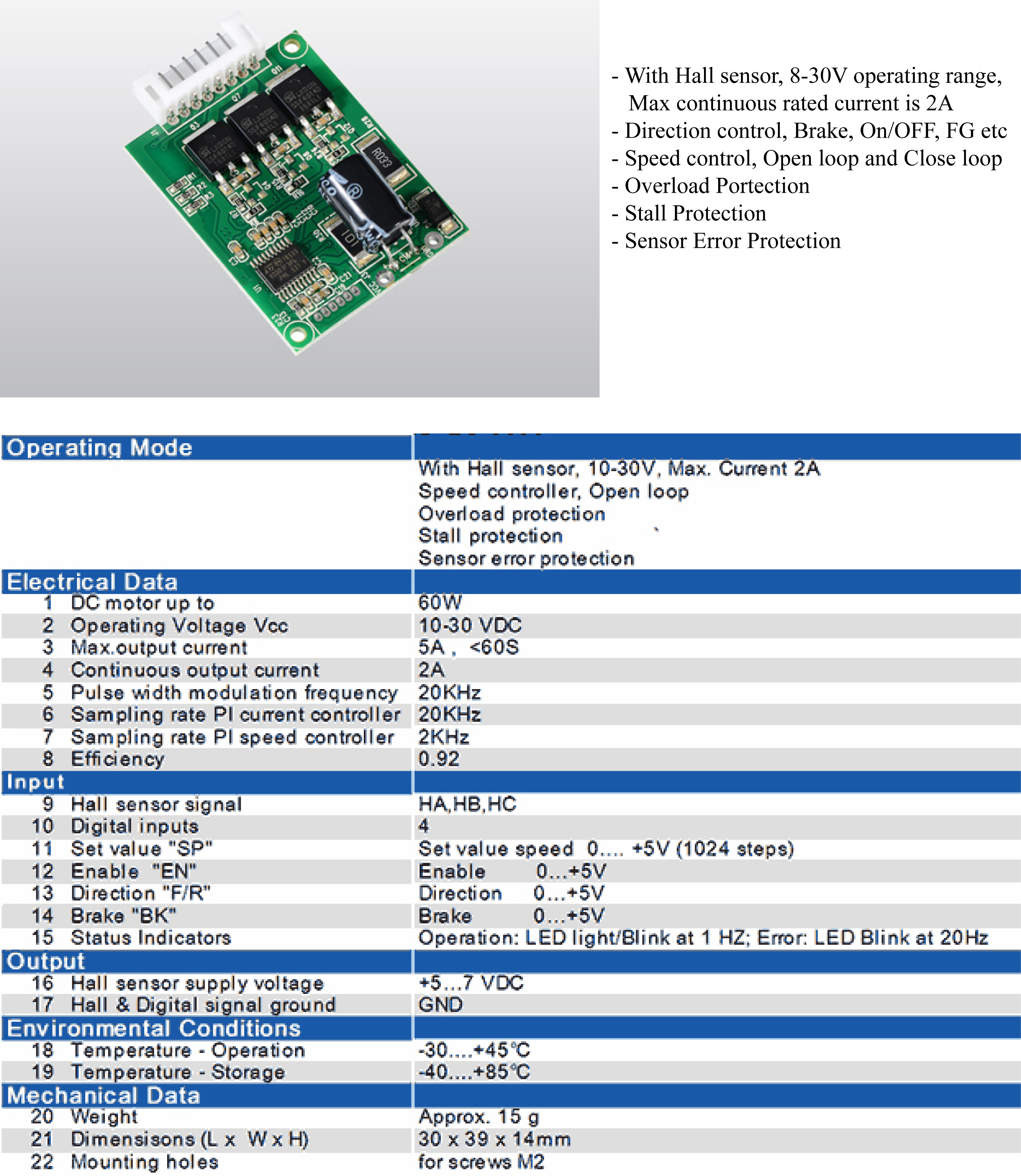

| 3AM2S | 10-30 | 5 | 2 | Sensor Version |

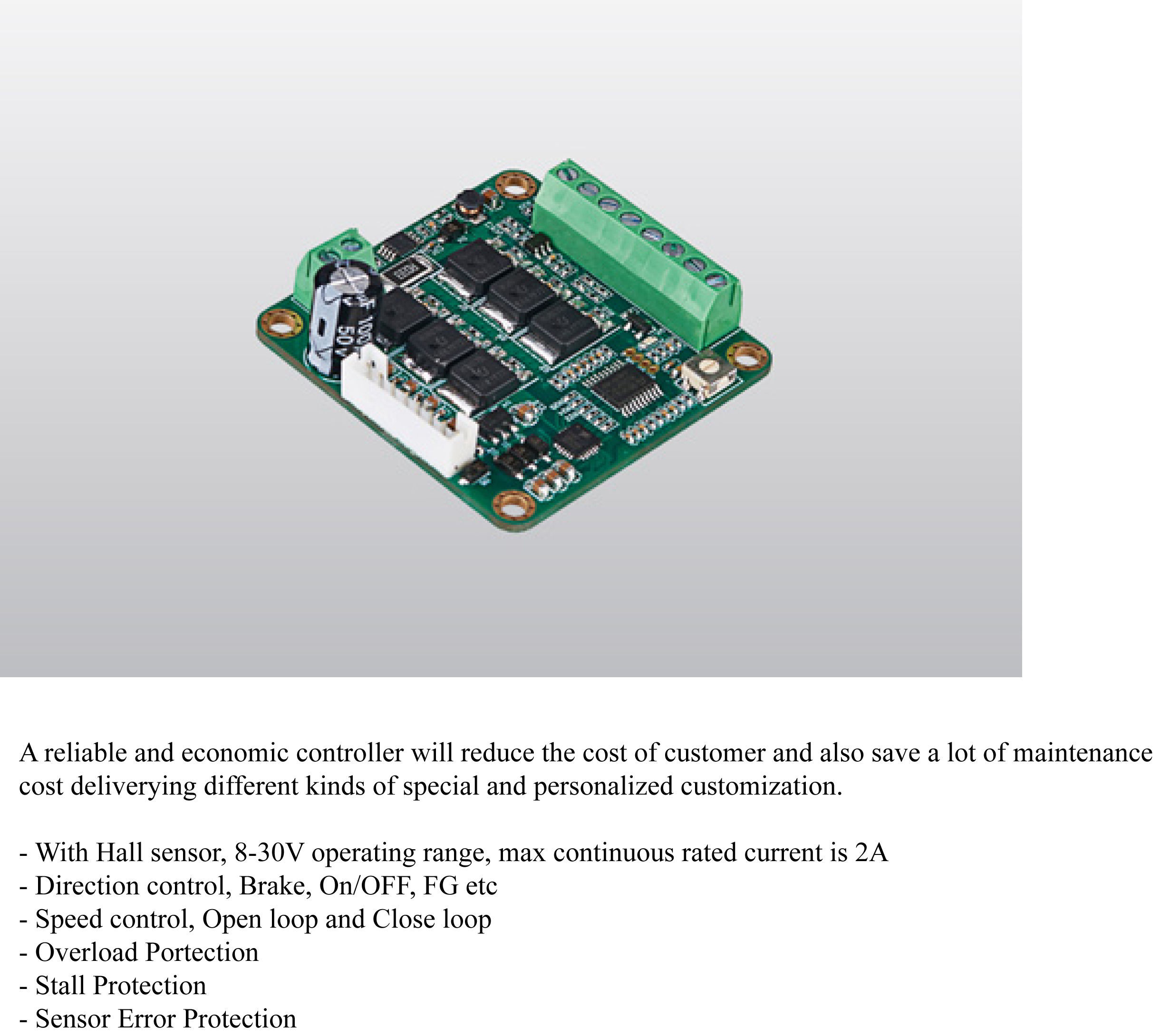

| 3AM3S | 8-30 | 5 | 3 | Sensor Version |
| 48A6S | 8-48 | 8 | 6 | Sensor Version |

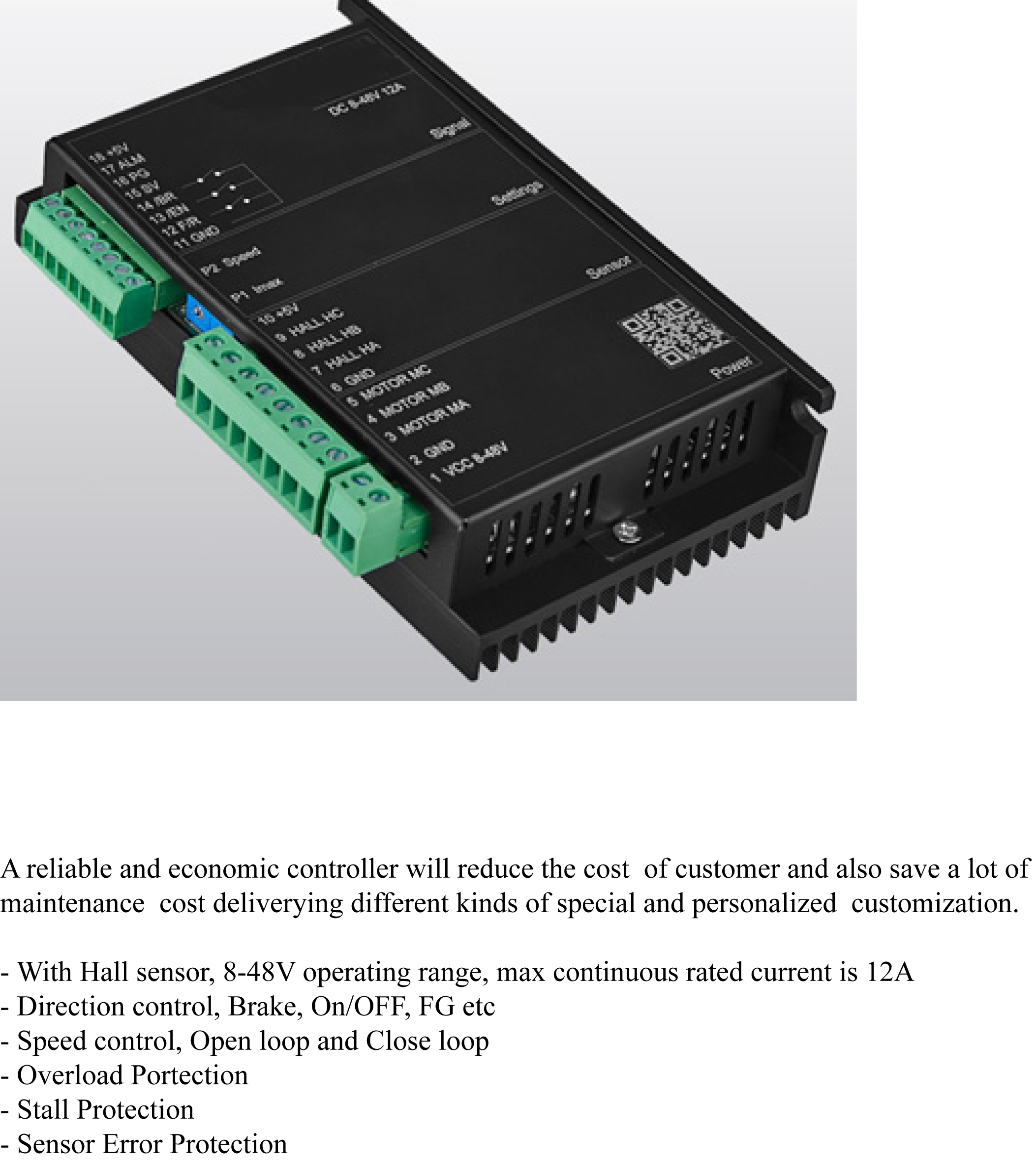

| 48A2S | 8-48 | 15 | 12 | Sensor Version |

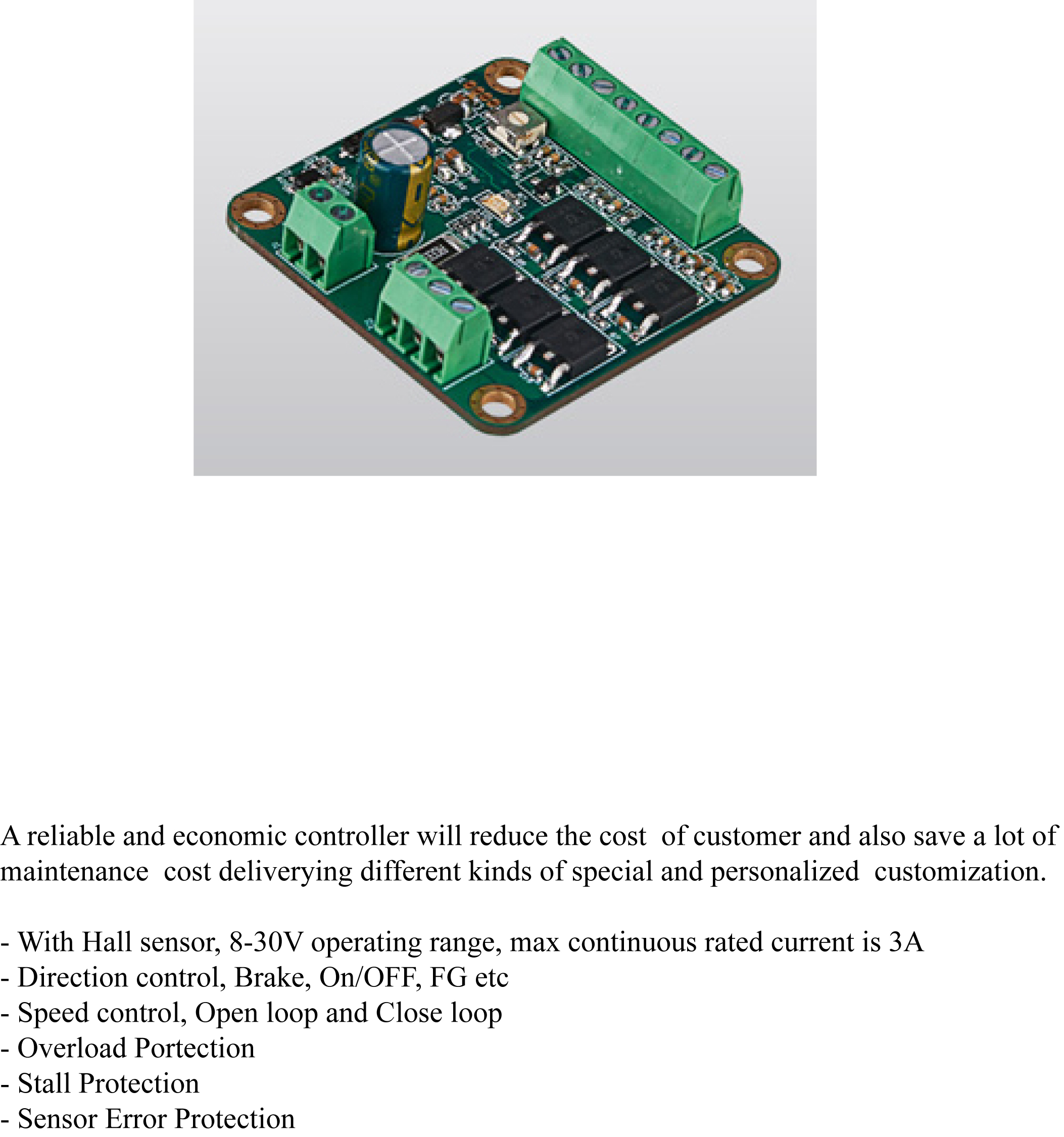

| 3AM3L | 8-30 | 5 | 3 | Sensorless Version |

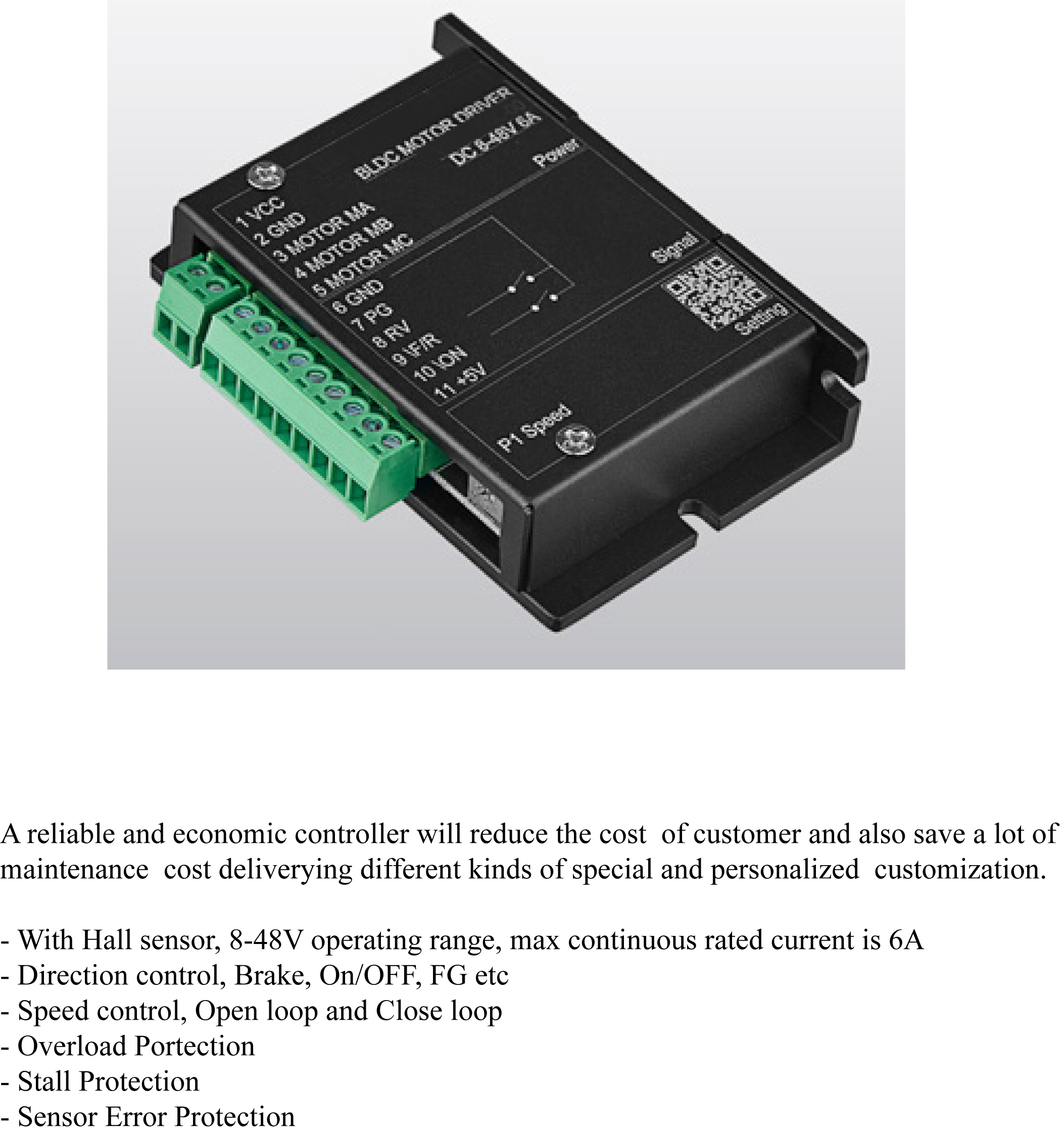

| 48A6L | 8-48 | 8 | 6 | Sensorless Version |
