Simulators

  1. Simulator 500A

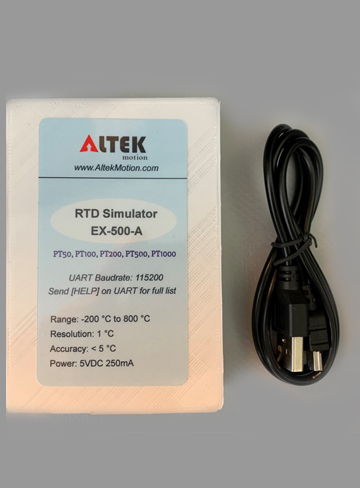

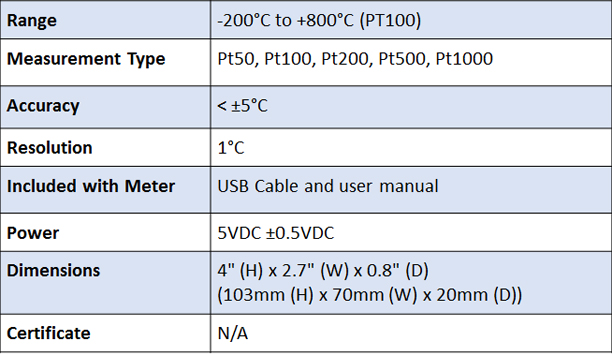

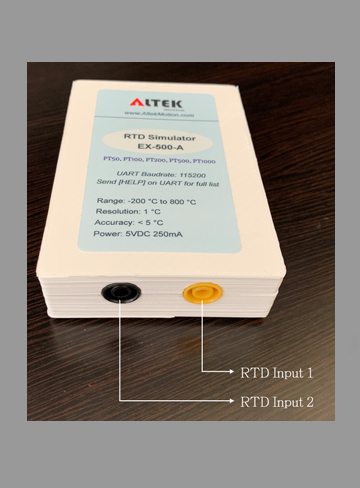

    RTD Simulator EX500-A

    - Controllable from USB port using any serial terminal software

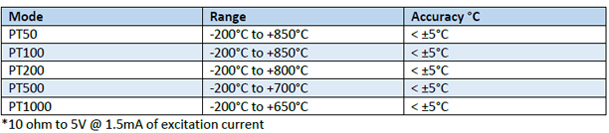

    - Simulates 5 different RTD types
    - Accuracy of ±3°C (< ±5°C in wider ranges)

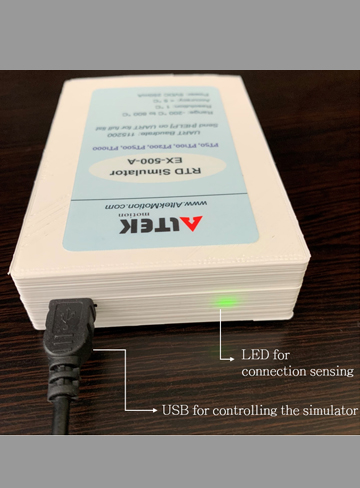

    - Smart device connection sense
    RTD Simulator EX500-A

    RTD Simulator EX500-A
    EX500A User Manual

    2. Simulator

    RTD Simulator EX1000-A

    The EX1000-A Simulator is a hand held device capable of simulating RTDs of different type and resistance in general. The Simulator can be powered on from a standard USB port or a power supply of 5VDC (Power supply not included). The simulator can be controlled by touch screen buttons and/or USB port connected to a serial terminal software tool (e.g. TeraTerm® or RealTerm®).

    - Controllable from buttons or USB port using any serial terminal software
    - Simulates 5 different RTD types
    - 5VDC USB Powered
    - 4.3” Touch Screen for full control
    - Centigrade and Fahrenheit choices
    - 1/10-degree step choices
    - Accuracy of ±3°C (< ±5°C in wider ranges)
    - Smart device connection sense
    RTD Simulator EX1000-A
    User Manual
